Hello Readers,
Acquired an 218 today, and connected replacing the MS600 inside my MC200 - MS600 - 568 setup.
Using Digital Aux Out into the processor. Network connection for Sooloos.
Weird enough DTS-CD did not seem to play correctly anymore (hear the bitstream noise), both MC200/MS600 through digital handle these fine and play DTS 5.1.
Anybody experienced/tested the same, and with same results?
Or did I do something wrong in the config, I did not find any parameter related to this.
Thanks.
Guido.
568.1 Processor, 562v3 MController, 596 DVD Player, 504 Tuner, MC200, MS600, 218, 210, Roon
|
|
|
|
|
Joined: Nov 2009
Posts: 3,861 Likes: 375
Meridian Partner Vogon Civil Servant
|
|
Meridian Partner Vogon Civil Servant
Joined: Nov 2009
Posts: 3,861 Likes: 375 |
Turn MHR off on the 218. The 568.1 will not take MHR in on a coax RCA input.
www.cmbintegrations.comOne step from the Presidency #1 Trinnov Altitude 32-8-16, 271, 8000XE, 7200SEHC, 7200.2, Seaton F18, JL Fathom F113, Revel w990's, Kef R7, ATI 528 Amp, JVC RS4100K, SI screen. Roon Nucleus+, Eno AG, Eno M link, 218. #2 Mark Levinson No5105, Ayre VX8 and CX8, Vandersteen Treo CT, Preamp varies. #3 Meridian Ellipse
|
|
|
|
|
Joined: Jul 2010
Posts: 40 Likes: 1
Harmless
|
|
Harmless
Joined: Jul 2010
Posts: 40 Likes: 1 |
Unfortunately does not help, still static. I tried this also as one of the first actions.
Digital rate, just changes PCM 44k to 88k, also no help.
Software version v1.0 build 185.
Other thoughts?
Guido.
568.1 Processor, 562v3 MController, 596 DVD Player, 504 Tuner, MC200, MS600, 218, 210, Roon
|
|
|
|
|
Joined: Oct 2004
Posts: 1,660 Likes: 30
Working on the ultimate question
|
|
Working on the ultimate question
Joined: Oct 2004
Posts: 1,660 Likes: 30 |
Are your front (left and right) speakers connected to the 568 or the 218?
Main: G61SL, 218, HD621, 2*7200SE, 7200HCSE, M6s, DSW, Apple TV 4K, NUC (Roon server)
Secondary: Wiim Pro, 3200, Audio Core 200
F80
|
|
|
|
|
Joined: Jul 2010
Posts: 40 Likes: 1
Harmless
|
|
Harmless
Joined: Jul 2010
Posts: 40 Likes: 1 |
Left and right speakers are connected to my 568 indeed.
I've tried yesterday evening with another amp (Denon) and same issue.
Guido.
568.1 Processor, 562v3 MController, 596 DVD Player, 504 Tuner, MC200, MS600, 218, 210, Roon
|
|
|
|
|
Joined: Oct 2004
Posts: 1,660 Likes: 30
Working on the ultimate question
|
|
Working on the ultimate question
Joined: Oct 2004
Posts: 1,660 Likes: 30 |
a total guess with out time to research ..
Is there an option to have the 218 volume set to full? If so please test.
Main: G61SL, 218, HD621, 2*7200SE, 7200HCSE, M6s, DSW, Apple TV 4K, NUC (Roon server)
Secondary: Wiim Pro, 3200, Audio Core 200
F80
|
|
|
|
|
Joined: Jul 2010
Posts: 40 Likes: 1
Harmless
|
|
Harmless
Joined: Jul 2010
Posts: 40 Likes: 1 |
There is analog volume "variable" setting as opposed to fixed indeed. Already tried both cases, same result.
In anybody able to test this on their equipment? Or am I the only one having this problem?
I am not sure if the firmware support it currently? Could be a "bug" if I am not alone.
Guido.
568.1 Processor, 562v3 MController, 596 DVD Player, 504 Tuner, MC200, MS600, 218, 210, Roon
|
|
|
|
|
Joined: Feb 2002
Posts: 8,815 Likes: 87
President of the Imperial Galactic Government
|
|
President of the Imperial Galactic Government
Joined: Feb 2002
Posts: 8,815 Likes: 87 |
![[Linked Image]](https://www.meridianunplugged.com/ubbthreads/gallery/16/full/2515.png) I haven't seen the unit nor looked at any settings info, but, if there is a 1x vs 2x setting like you see on MS200 (for example) then you should set to direct to preserve the native rate. Or try 1x. If 2x then it is upsampling everything and mucking up the DTS code. Is there any such setting ?
Rgds,
Nick
|
|
|
|
|
Joined: Jul 2010
Posts: 40 Likes: 1
Harmless
|
|
Harmless
Joined: Jul 2010
Posts: 40 Likes: 1 |

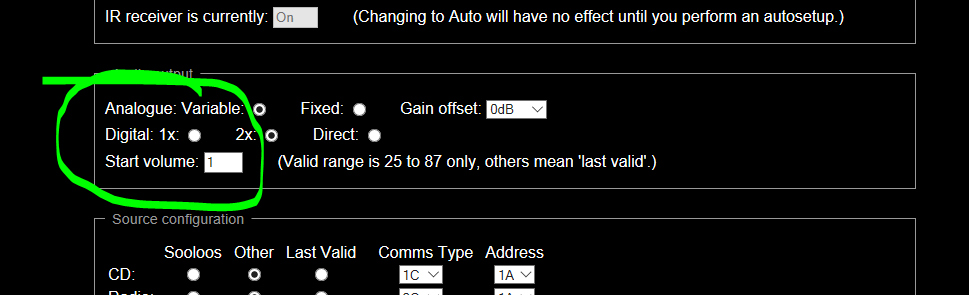

Yes, there is as well.
In fact the screen looks very similar.
Direct option is missing on this device.
Also tried 1x or 2x, does not make a difference.
Here you can see also the Analogue Variable & Fixed settings talked about as well. Both combinations also don't work.
In fact having 2x or any combination on my MS600 or MC200 works fine. But I tried them all to be sure.
Kind Regards.
Guido.
Last edited by JBS; 2017-09-04 18:35.
568.1 Processor, 562v3 MController, 596 DVD Player, 504 Tuner, MC200, MS600, 218, 210, Roon
|
|
|
|
